RME Hammerfall DSP AES-32 synchronizer board - PCI-e, szinkronizáló kártya

8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms

ASIO zero CPU load technology: 0 (zero!)% CPU load when using ALL channels!

All settings: changeable in real-time

Clock modes: slave and master

Automatic and intelligent master/slave clock control

Enhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct Monitoring

Sync sources: 8 x AES, word clock, internal

Varipitch: by input signal or word clock

Sample rates: 32 kHz up to 192 kHz, variable (Sync/word clock)

Sample rate range: AES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz

Jitter: < 1 ns, internal and all inputs

Jitter sensitivity: PLL operates even at 100 ns Jitter without problems

Comes with DIGICheck: the ultimate measurement, analysis and test tool

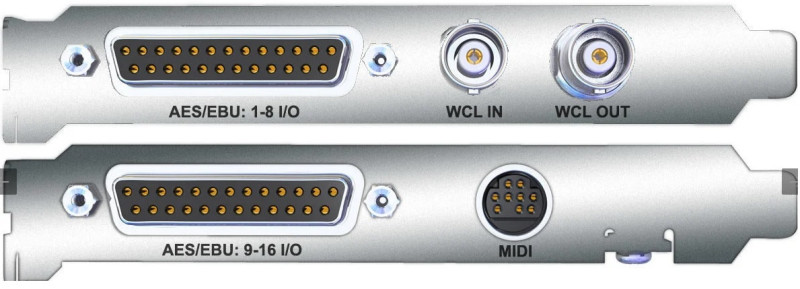

Input 8 x AES, 2 x MIDI, word clock (BNC)

Output 8 x AES, 2 x MIDI, word clock (BNC)

Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), termination via jumper

Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof

MIDI input and output: via four 5-pin DIN jacks
